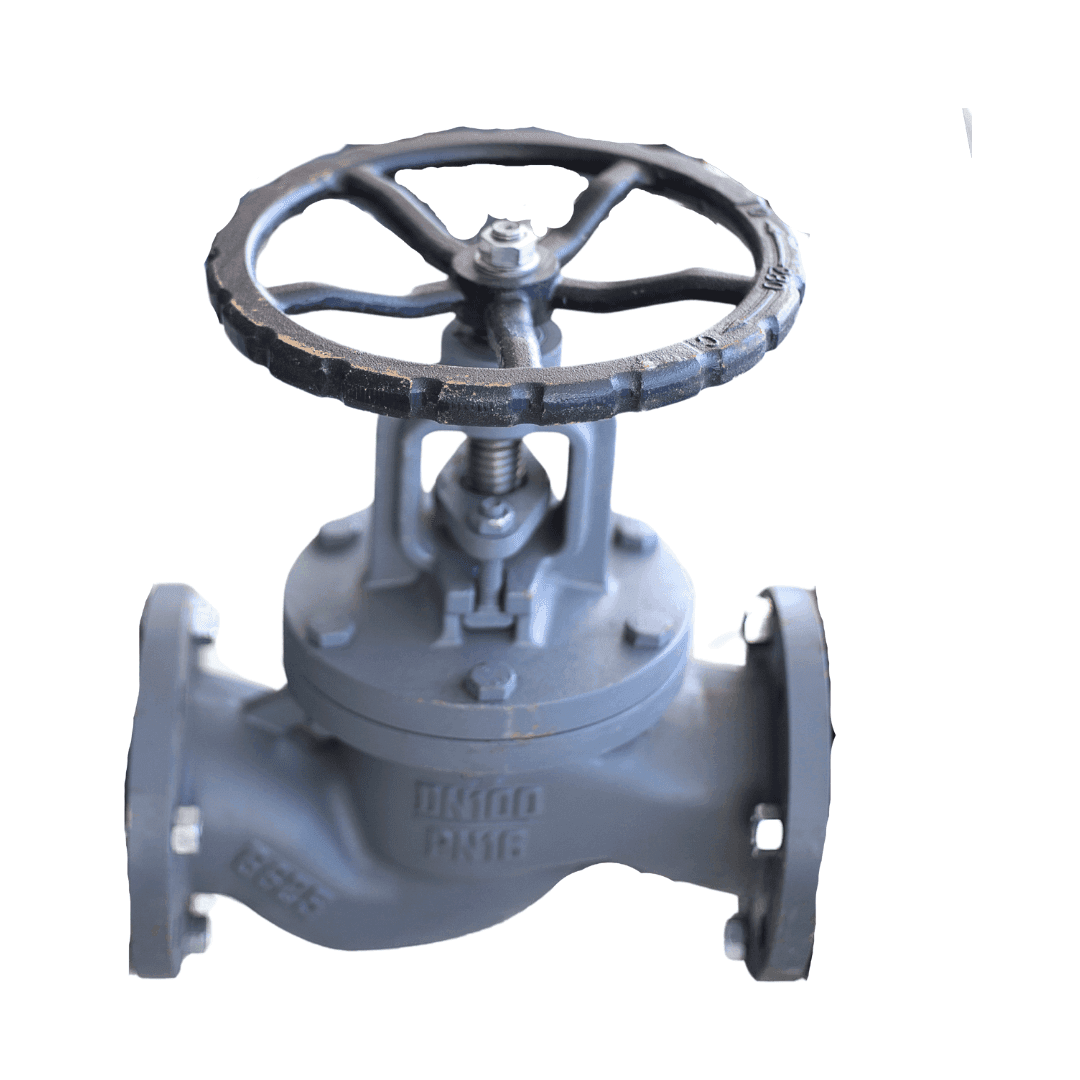

GLOBE VALVE
Throttling and flow regulation for refineries, hydrocarbon, energy and power industries.
Overview
Precision throttling and flow regulation in high-pressure steam, hot water, and hydrocarbon service. Available in flanged and butt-weld ends.
- Size Range
- 2" to 24" (DN 50 to DN 600)
- Pressure Class
- ASME 150# to 2500#
- Pressure & Temp. Rating
- ASME B16.34
- End Connections
- Flanged, Butt-Weld
- Operator / Actuator
- Handwheel Gear, Pneumatic, Hydraulic, Electro-Hydraulic, Electric Motorised actuators
Materials
Built for the service.
Carbon & low-temperature carbon steel, martensitic & austenitic stainless steel, duplex & super duplex stainless steel, nickel alloys, nickel aluminium bronze, Hastelloy, Inconel, titanium alloy, and carbon steel with internal CRA overlay.
Standards & Certifications
Compliant by design.
API 600 / BS 1414 / API 6D
Design standard
API 598 / ISO 5208 / BS 6364
Testing
API 607
Fire safe
ASME B16.5
End connection
